DESCRIPTION

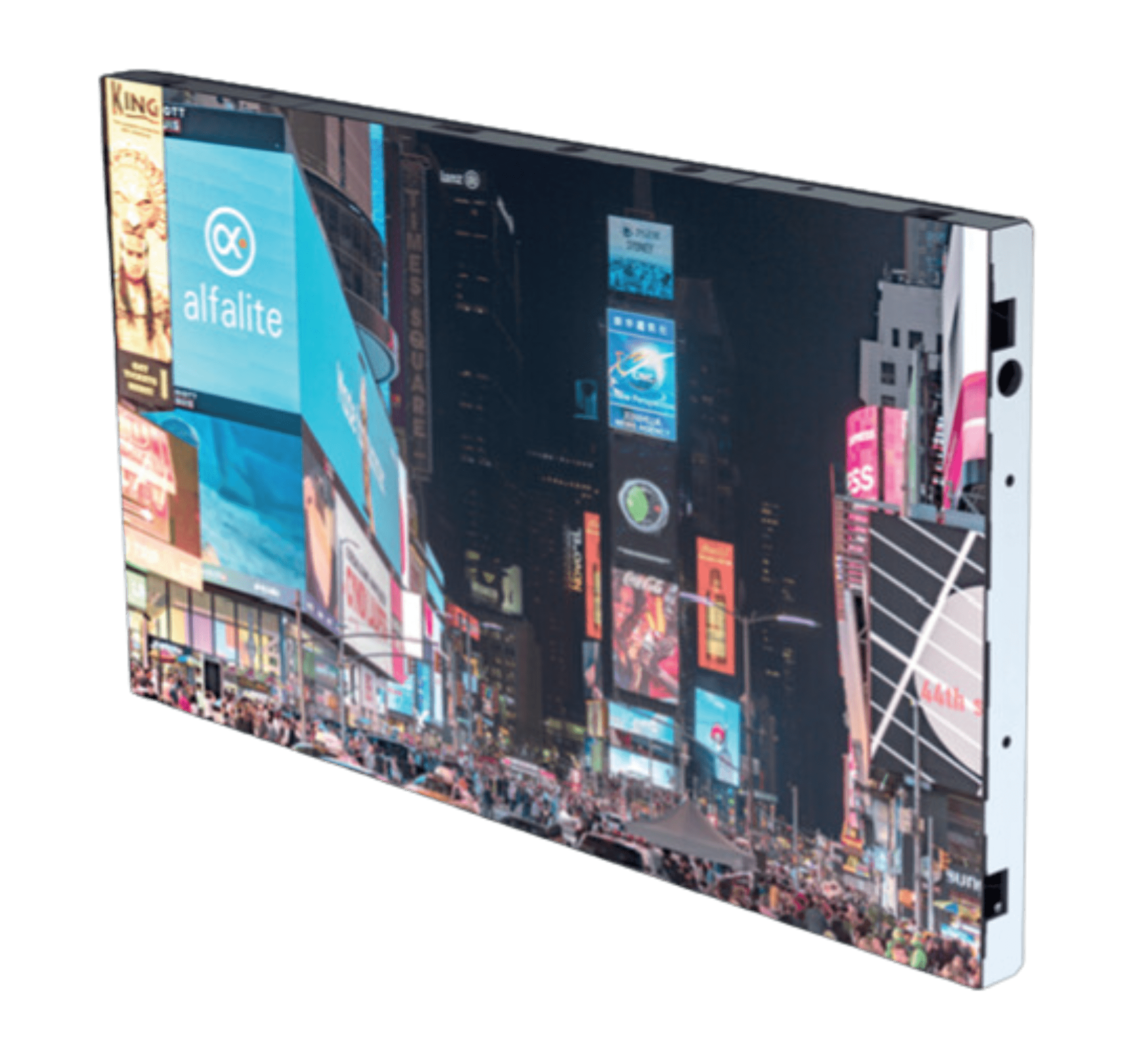

UHD FINEPIX is a LED panel specially designed for mission critical environments in control rooms, crisis cabinets and management rooms, as well as for broadcast and virtual set environments in need of finepitch or microleds. It is optionally offered with COB (Chip On board) finish to improve the level of protection and viewing angle or integrated with ORIM (Optical Resin Injection Module) that offers:

  • Protection against impact, liquids and chemical agents.
  • Protection against static electricity.
  • Increased durability and reliability with lower failure rate.
  • Increased viewing angle up to 175º horizontally and vertically.
  • Parameters protection against static electricity ESD > 10kV.
  • Fire resistance parameters. UL94-0 compliance.
  • Better accuracy/gap between modules. <0.05mm.
  • Better thermal dissipation.
  • Easier cleaning and disinfection of bacteria.
  • Shortest time to repair in the market.

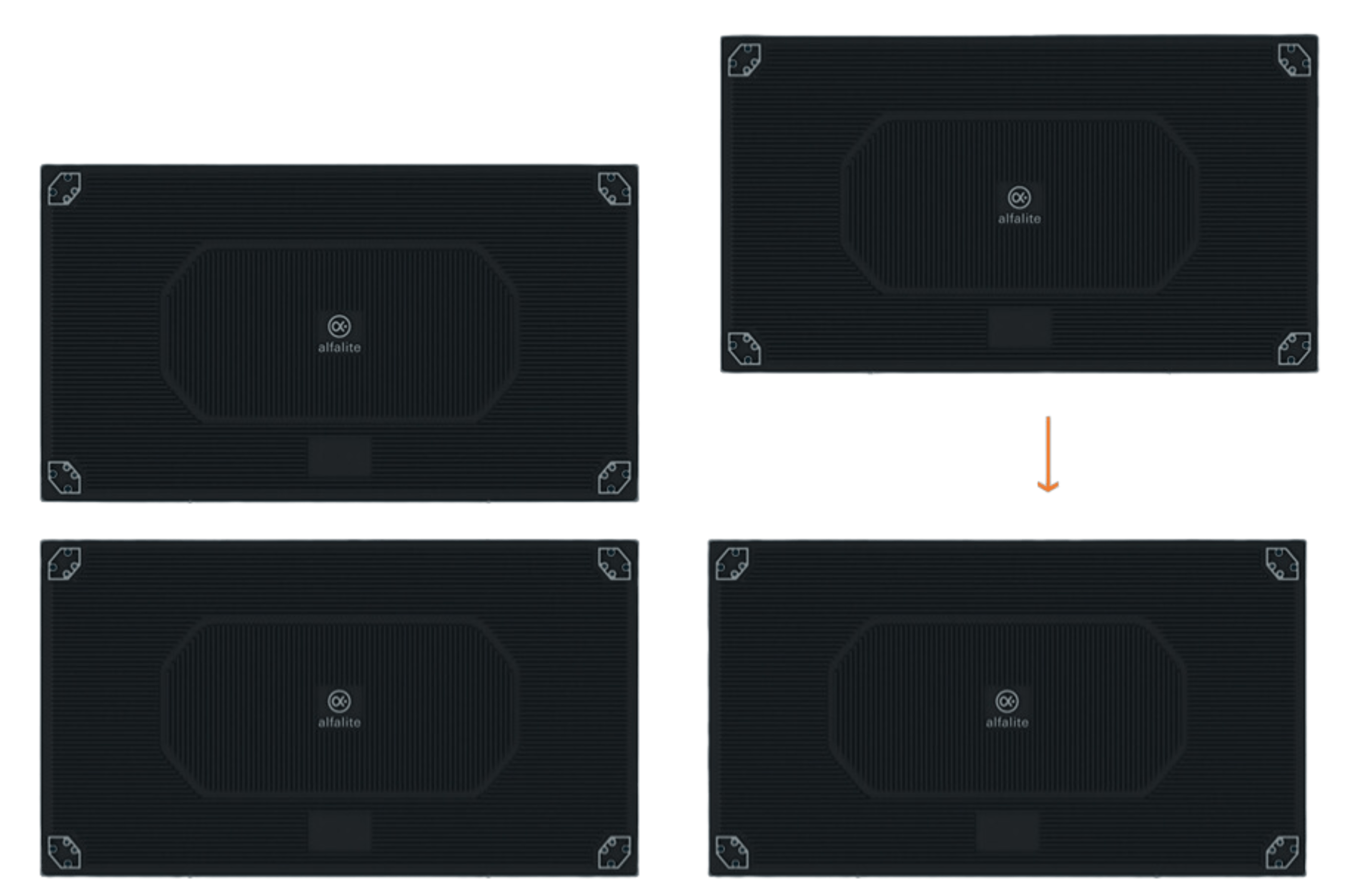

UHD FINEPIX has front access with magnets, in order to adapt to the requirements of any installation. Modules and power supply can be manipulated from the front for repairs.

Panel sizes are designed to replicate standard formats from full HD, 4k to 8k.

We have included all these improvements without forgetting the main aspects that characterize us: high quality, low power consumption and reliability.

  • UHD FINEPIX MATIX® ALFACOB

TECHNICAL SPECIFICATIONS UHD FINEPIX

ULTRA HD LED PANEL FOR MISSION CRITICAL ENVIRONMENTS IN CONTROL ROOMS,
CONTROL ROOMS, MANAGEMENT ROOMS AND CRISIS CABINETS.



ALFALITE UHD FINEPIX MATIX®

. ALL IN ONE

TOUCH SCREEN
– Interactivity
– Infrared touch screen
– Multi-touch technology 20 touches

FINEPIX UHD Panels
Better video and image quality.

Corporate Environments
and Control Rooms

MULTISCREEN DATA
Auxiliary preview/monitor
8 Multiview inputs
Up to 6 4K signals
Transition effect
10 pre-designed templates
Operator Interface

SMARTSHARE CONTROL
Corporate Environments

and Control Rooms

OPERATION CONSOLES
Multi-monitor stands Mixed drawer units – 19” Racks 24/7/365 Ergonomic Chairs
Ergonomic Accessories



Alfalite Finepix MATIX® AlfaCOB

MULTI-LAYER OPTICAL PROPERTIES FOR CHIP ON BOARD

Optimización de características

  • (Matix) Mate y Menos Reflejos

  • Ángulo de visión de hasta 175º horizontal y Vertical

  • Brillo más alto del mercado

  • Mejor Uniformidad Cromática y Lumínica

  • Contraste Ultra Oscuro. Mejores negros

Máxima precisión técnica

  • Mejor precisión entre módulos. < 0.05mm

  • Mejora la distorsión de la luz en las juntas de módulos y paneles

  • Menores Reflexiones y Deslumbramientos

Enfocado al usuario

  • Mayor Disipación Térmica

  • Parámetros de protección frente a Electricidad Estática ESD > 10kV

  • Anti Luz Azul. Confort Visual

  • Menor tiempo de reparación del mercado

Fiabilidad garantizada

  • Protección contra impactos, líquidos y agentes químicos

  • Menor consumo del mercado

  • Mejor adhesión al sustrato (PCB)

  • No se decolora bajo uso intensivo

ADVANTAGES OF LED SCREENS VS. VIDEO WALLS

Higher Image Quality

Higher quality due to Uniform Calibration
Continuous image and cleaner appearance Greater color balance and depth of color
Higher Brightness (Adjustable pixel by pixel) Deeper Blacks
Better contrast 3-5:1
Mechanical Accuracy
Seamless mounting
Unbeatable Flatness
Curved mounting option (concave)

More efficient consumption
Lower energy consumption
Long durability >100,000 hours
Parameter regulation according to need
Low operating temperature. Lower dissipation.

Special maintenance and service
Non-disruptive module replacement Module replacement; Front & Rear
Repair of individual components

SCALABLE. UNIVERSAL SIZE

16×16 Panels
8K: 7680 x 4320

8×8 Panels
4K: 3840 x 2160

4×4 Panels
FULL HD: 1920 x 1080

The resolution indicated is with the Alfalite UHD Finepix 1.2 model.

SMART ALFALITE FACTORIA 4.0

SMART PANEL
– Preventive and remote maintenance
Temperature and humidity
Data/video connections
Sender and receiver card control

– Remote monitoring and management
External elements
Color and brightness values
Refresh rate (Hz)

EUROPEAN MANUFACTURER 4.0
– Industrial Mechanical and Electronic Design
CAD and 3D Design Tools
AR Simulation (Augmented Reality)

– PCB production. Own SMD lines
Traceability
Automation and Control Systems
Indicators for BIG DATA analysis

– LEAN Manufacturing methodology.

HIGHER RESIDUAL VALUE:

Quality, Reliability, Durability

SMART POWERBOX
– Status indicator on the Powerbox
Reports power, data/video status.
Main signal/backup status.

No fans-Noise free
Convection dissipation free
FA, HUB and Modules connected without cables.

MODEL

  UHD Finepix 0.6

  UHD Finepix 0.9

  UHD Finepix 1.2

  UHD Finepix 1.5

  UHD Finepix 1.8

PIXEL PITCH (mm)

0.6

0.9

1.2


  1,5

  1,8

PANEL RESOLUTION (px)

  960 x 540

  640 x 360

  480 x 270

  384 x 216

  320 x 180

PIXEL DENSITY (px/m2)

  2.560.000

  1.137.777

  640.000

  409.600

284.444

TAMAÑO DEL PANEL (mm)

600 x 337,5

PIXEL SETTINGS

  AlfaCOB / MIP

  AlfaCOB / MIP

 AlfaCOB

 AlfaCOB

 AlfaCOB

AVERAGE CONSUMPTION (W/panel)

50

PANEL WEIGHT (kg)

5

5

5

BRIGHTNESS (cd/m2)

1.200

1.500 / 1.200

  1.500

  1.500

  1.500

REFRESH RATE (Hz)

7.680 (3.840 MIP)

7.680 (3.840 MIP)

7.680

7.680

7.680

VIEWING ANGLES

175º / 175º

SERVICE HUMIDITY (%)

10º ~ 90º

ESTIMATED USEFUL LIFE (hours)

100.000

VISION ANGLE

175º

175º

175º

175º

175º

SERVICE TEMPERATURE (ºC)

10º ~ 90º

10º ~ 90º

10º ~ 90º

10º ~ 90º

10º ~ 90º

MICROLED COB

Chip integrated directly on PCB. Less led failures
Higher dissipation. Prolongs the life of the LED
Better protection against shock, dust and humidity
Improved antistatic electricity

MIP

MiniLED in package. Combines flip chip assembly and common cathode technologies to cover the ultra-small pixel range.
Anti-glare film, anti-reflective film and blackening film.
These coatings collectively improve black levels, resulting in a deeper and more uniform product appearance.
